UHF VHF Hand Held Radio 16 Channels Dual Band Talkie Walkie Two Way Radio 5-10km

Product Categories

SHENZHEN SECUERA TECHNOLOGY CO.,LTD

Contact Now

Name: UHF VHF Hand Held Radio 16 Channels Dual Band Talkie Walkie Two Way Radio 510km
Brand: SECUERA
Price: 1 USD

Brand Name : SECUERA

Model Number : Th-850plus

Certification : CE,FCC,ROHS,ISO

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000 pcs per month

Delivery Time : 1-4 days after payment

Packaging Details : carton box

Frequency Range : 136-174MHz/350-390MHz

Channel Capacity : 99

Operating Voltage : 7.2V DC ±15%

Antenna Impedance : 50Ω

Channel Spacing : 12.5kHz/25kHz

Working Temperature : -30 °C - +60 °C

Frequency Stability : ±2.5 ppm

warranty : 2 years

Contact Now

0.5W/5W/10W HI/LO power programmable	Noice suppression function	Voice function(Chinese/English),Voice ON/OFF
Hight power output(10W/9W)	Timer out timer;Monitor	Battery LED indicator
Rain-proof	Built-in Led flashlight	Battery save function
Low batter alarm(Voice prompt)	Keypad lock/unlock	Emergency alarm function(Local/Remote alarm)
50 groups of CTCSS 105 groups of DCS	3500mAh ultra high capacity Li-polymer rechargeable battery	Charging directly from the power supply or charging with the cradle.

Model NO.	TH-850 Plus
General
Frequency Band	VHF	UHF
Frequency Range	136-174MHz/350-390MHz	400-480MHz/440-520MHz
Channel Capacity	99
Operating Voltage	7.2V DC ±15%
Antenna Impedance	50Ω
Channel Spacing	12.5kHz/25kHz
Working Temperature	-30 °C - +60 °C
Frequency Stability	±2.5 ppm
Size (Without Antenna)	120(W)mmx60(L)mmx40mm(D)
Weight(With Battery)	about 260g
Battery	3500mAh(Li-poly battery)
Transmitter
RF Power Output	0.5W/5W/10W
Modulation Type	F3E
Modulation Distortion	< 5%(300-3000Hz)
Max Freq Deviation	< 5kHz(1000Hz When 100%)
FM Noise	<=-45dB
Receiver
Sensitivity(12Db SINAD)	0.16μV
Selectivity	55dB
Adjacent Channel Selecivity	>=70dB
Noise Respond	>=60dB
Communication Range	3-5km(Downtown),6-20km(In the Open Area)
FM Noise	30dB/40dB
Modulation Type	8K/16KF3E
Audio Power Output	500mW When Distortion Less Than 10%
Audio Distortion	< 5%
Operating Bandwidth	±3.5kHz/3.75kHz
Standby Current	< 12mA

UHF VHF Hand Held Radio 16 Channels Dual Band Talkie Walkie Two Way Radio 5-10km

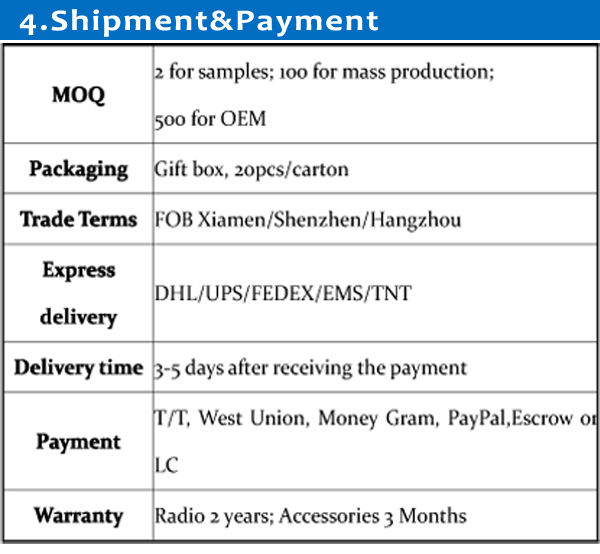

Packaging & Shipping

UHF VHF Hand Held Radio 16 Channels Dual Band Talkie Walkie Two Way Radio 5-10km
